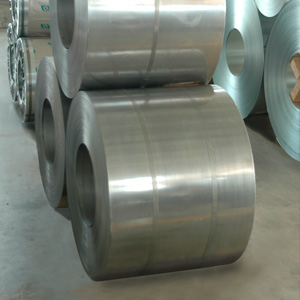

CR - Cold Rolled Annealed Sheet

Tempered products are products that are tempered in cold annealed, fully hard sheets in annealed, hardened structures are removed and then surface smoothness is provided by tempering.
CRF → CR Annealing Line
Material Thickness 0.25 - 2.00 mm
Width 800 - 1550 mm
Coil Inner Diameter 508 mm & 610 mm
Maximum Roll Weight 25 Tons
  Click for Workable Quality Detail Table



WORKABLE QUALITIES
COLD ROLLED LOW CARBON STEEL FLAT PRODUCTS FOR COLD FORMING
(CR) (TS EN 10130)
 No Steel Quality Steel Number Chemical Composition ( % ) Max Chemical Composition
Yield Strenght( N/mm2 ) Max Tensile
Strenght
( N/mm2 )		 Elongation ( % ) Min
C P S Mn e ≤ 0,5 0,5 < e ≤ 0,7 0,7 < e e ≤ 0,4 0,5 < e ≤ 0,7 0,7 < e
1 DC 01 1.0330 0,12 0,045 0,045 0,60 320 300 280 270 - 410 24 26 28
2 DC 03 1.0347 0,10 0,035 0,035 0,45 280 260 240 270 - 370 30 32 34
3 DC 04 1.0338 0,08 0,030 0,030 0,40 250 230 210 270 - 350 34 36 38

Note: Apply EN 10130 standart for details and explanations

  • Tezcan A.Ş, which aims to grow vertically and continues its investments for integration with this understanding, continues to produce 1.3 million tons of flat products per annum and produces high added value products. Since its foundation, it has become one of the leading companies in its sector with the investments it has spent its life with, its conformity with global quality standards, the use of latest technology equipment and its rapidly evolving structure.
